All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower

January 25, 2017

STEP BY STEP INSTALLATION GUIDE



Proving that the best can get better, Triton has launched T80 Pro-Fit – the ultimate retrofit solution and latest addition to The Great British Shower Company’s iconic T80 electric shower family.



New developments in the product’s design have been made possible by analysing installer feedback gathered through training days at Triton HQ and direct communication to ensure the new unit meets every need and expectation. Combining this insight with more than 40 years of expertise in the UK bathroom market, Triton has made some seriously useful advancements to the eleventh generation of its T80 range.



The end result is a product which you can rely on to address the growing demand for retrofit shower solutions and replace almost any electric shower, whatever the brand or model. Here, Steve Saunders, senior technical manager at Triton, provides a simple step-by-step guide.



1. The T80 Pro-Fit unit is supplied with left inlet plugged and the popular right inlet open plus, Triton has included a nut and olive in the box, making it even easier and quicker to get connected when re-using an existing compression fitting. It is also suitable for other fitting materials and types, copper, plastic and the popular push fit. A template is also supplied to assist in routing pipe and cable in new installations.



All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower



2. The T80 Pro Fit water inlet connects to a left or right hand supply from top, bottom, back or sides. The shower inlet will connect to any demountable push fit fitting or compression fitting. An extension fitting is supplied to cater for a top entry pipe on the right hand side. A blanking plug is simply screwed into the left or right hand inlet depending on which side the water supply enters the unit.



All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower



3. There are eight water and eight electric entry points and Triton’s Swing-Fit™ terminal block fits on the left or right for cable entering from the top, bottom, back or sides – offering various fitting possibilities.



All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower





4. Top pipe and cable entry trims can be inserted before or after the shower has been fitted to the wall. A removable bottom trim plate with insert trims makes it easy to route a water pipe and supply cable into the unit from the bottom.



All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower



5. There are a choice of three bottom screw fixing points in the back-plate making it easier to avoid an existing cable or pipe concealed in the wall.

All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower

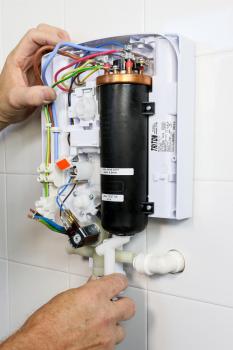

6. With the bottom trim plate removed there is clear access to connect the water fitting and supply cable. For added convenience, wider channels within the backplate allow pipe to run alongside large cable up to 16mm, and are perfectly aligned for straight forward connection to the water inlet and terminal block



All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower

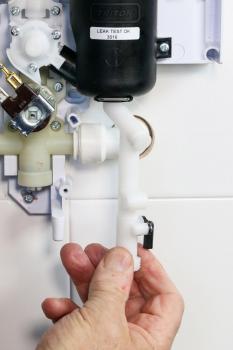

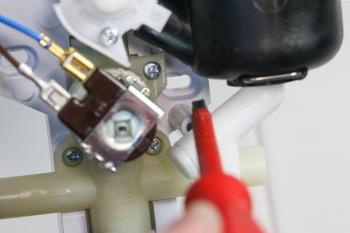

7. If required the water outlet from the heater can be rotated to give greater clearance and access to the water supply fitting. At this point the water supply can be turned on and the inlet fitting checked for leaks.

All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower

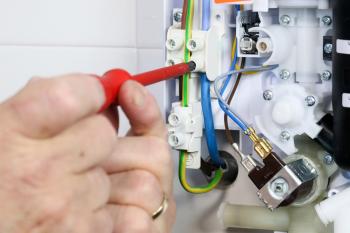

8. Make cable connections to the terminal block ensuring screws are good and tight.

All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower

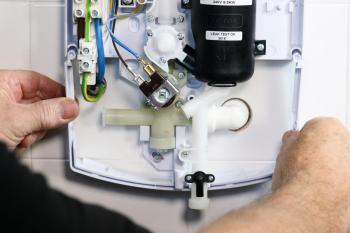

9. Fit the bottom trim and set the power control to cold before fitting the cover.

All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower

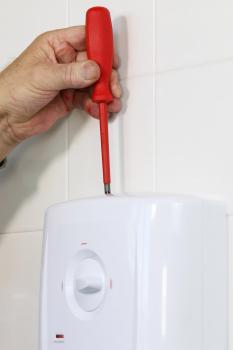

10. Fit the front cover and secure with the supplied screws. The centralised dials will only fit one way onto the spindles providing an error free as well as a wire free cover fit ensuring that no time is wasted lining up components.

All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower

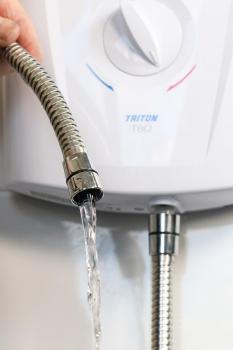

11. Fit the shower hose. Turn on the electric supply, start the shower on a cold power setting and low flow setting and wait for water to flow from the shower hose. Press the stop button and fit the riser kit.

All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower

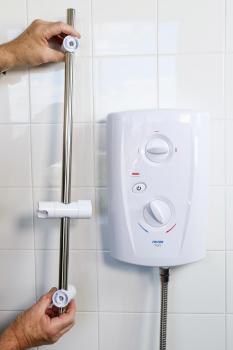

12. The 670mm riser rail (up to 620mm fixing centres) allows for the direct replacement of any standard rail. In addition, both wall brackets can be positioned along the length of the rail providing the flexibility to fix either on the grout lines, in the centre of tiles or to any previous holes.

All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower

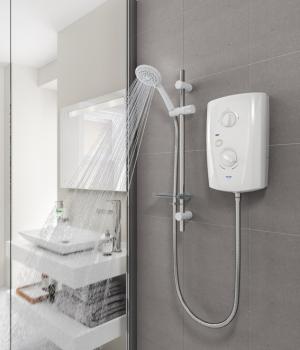

For complete convenience, the T80 Pro-Fit also includes a longer reach 1.5m hose, a hose retainer and an optional clip-on bottle tray. The unit has cold, economy and full heat settings, an illuminated start/stop button and a low pressure indicator.

All Pros No Cons With Triton's New T80 Pro-Fit Electric Shower



So when it comes to any replacement job Triton’s T80 Pro-Fit is the answer –  the brand and electric shower you can rely on to deliver all pros and no cons.



Prices start from RRP £145 for the new Triton T80 Pro-Fit electric shower. For further information about the ultimate retrofit solution, visit tritonshowers.co.uk, follow @tritonshowers on Twitter or ‘like’ TritonShowers on Facebook.
