The new drain housing, DallFlex from Dallmer revolutionises drainage technology. It can be combined with a total of seven different Dallmer shower trays.
Until now, shower trays and drains in ground-level showers were usually a fixed unit. Drainage specialist Dallmer has developed a system which separates the drain housing and shower channel. This ensures both easier cleaning and the possibility of cutting the shower tray so that it can always be integrated into the shower area. In this way, Dallmer offers a drainage system that allows craftsmen, retailers and planners as well as builders the greatest possible choice and flexibility for drainage in the shower area and is also DIN 18534 compliant.
Hygienic, efficient, flexible

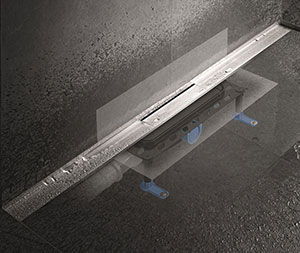

The drain housing DallFlex is the centre of the DallFlex system family and can be used with all models of shower trays: CeraFloor and CeraWall as well as Zentrix and CeraNiveau. The installation of DallFlex is done according to the channel either in the surface or directly on the wall. The height of the drain housing depends on the variant 30, 65 or 90 mm. This drainage solution is therefore ideally suited for renovations as well as for new buildings.
The removable odor closure makes the entire system easy to clean and therefore particularly hygienic. The sealing cuff with click mechanism is always packed separately during delivery, so that it is protected and can be safely clicked on the drain housing. After professional insulating into the composite seal, a permanently dense system is created.
Function and Design
The DallFlex system family not only convinces by function, but also by high-quality designs. The stainless steel shower trays are available with a classic matt or polished finish, as well as with an additional PVD coating in the trendy colours anthracite, pink gold and brass. When colour variants, lengths and variations are counted together, there are more than a hundred possibilities for the design of floor-identical shower areas.
